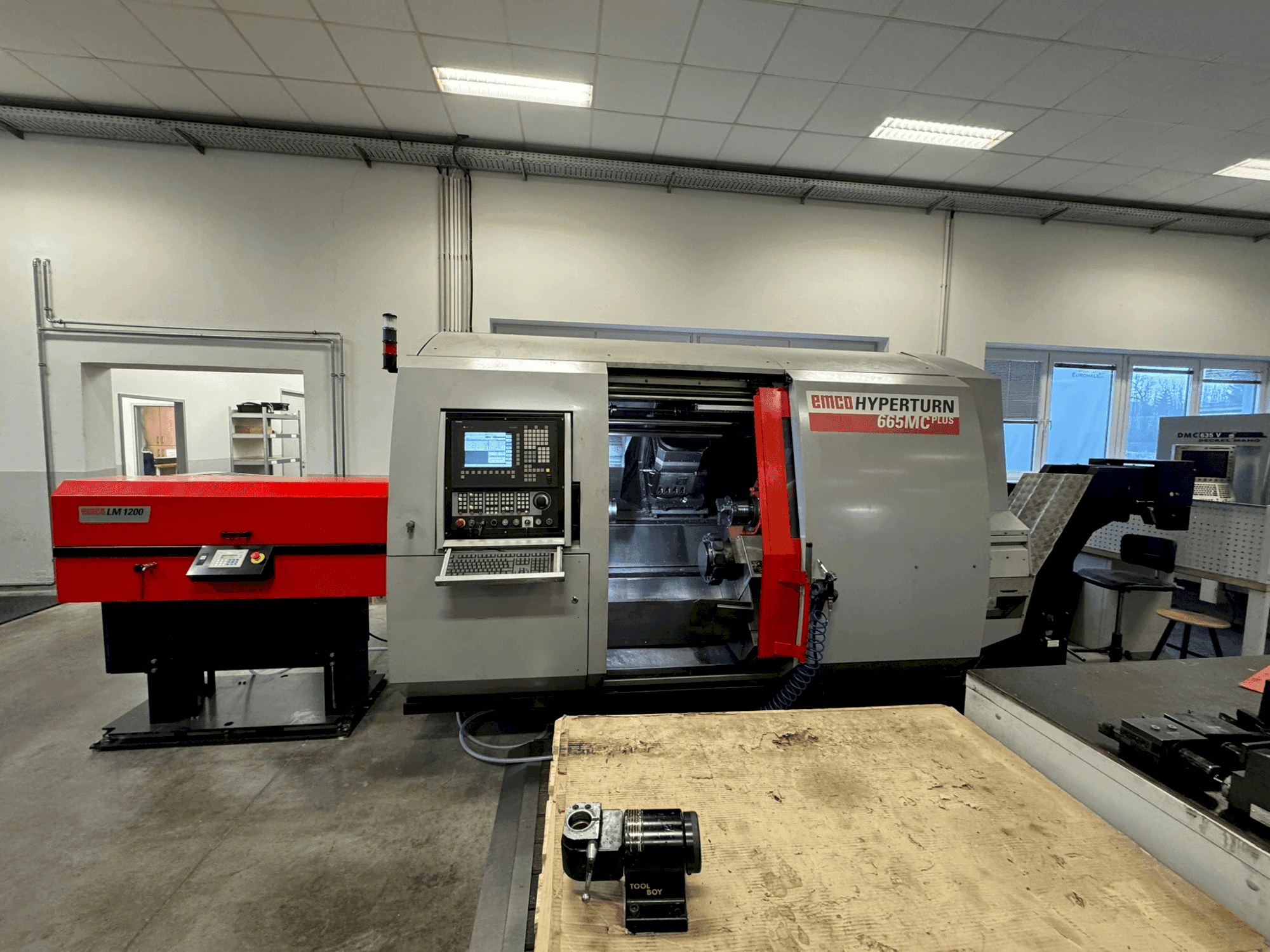

This 6-axis EMCO Hyperturn 665MC Plus turn-mill centre was manufactured in 2008. It features a multi-axis CNC system with Y-axis and B-axis for complete machining of turned and milled parts. Equipped with integrated spindle motors on both main and counter spindles, it offers a spindle speed up to 5000 min-1 for the main and 7000 min-1 for the counter spindle. Includes a 24-position tool magazine and SINUMERIK 840D control. If you are looking to get high quality turning and milling capabilities consider the EMCO Hyperturn 665MC Plus machine we have for sale. Contact us for more information about this machine.
Übersicht
- Hersteller: EMCO
- jahr: 2008
- MODELL: Hyperturn 665MC Plus
- Produktionsstunden: 18000
- anwendungstyp: Drehen
- Standort: Österreich
- maschinentyp: Dreh-Fräszentrum
- Marke Steuergerät: SIEMENS
Technische Daten - EMCO Hyperturn 665MC Plus
Steuerung
- Steuerungsmarke: SIEMENS
Bewegung
- Anzahl der Achsen: 6
Technische Spezifikation
- Spindelleistung: 29 kW
- Spindeldrehzahl: 5000 RPM
Zusätzliche Informationen
Additional equipment
- Tool turret: 12-position tool VDI 30 radial with directional logic for up to 12 driven tool stations
- B-PowerMill: Motorised milling spindle with 24-position tool magazine, 210° swivelling range
- Optional tool package: Includes stationary and driven tool holders, collet chuck holders, reducing sleeves, and operating spanners
- Hollow clamping cylinder with draw tube / Part ejector and flushing through the counter spindle / Part pick-up device for finished parts
- Part pick-up device for finished parts / Coolant device in the chip conveyor / High-pressure pump (14 bar) and fine filter
- Flushing pumps (3.7 bar) / Control cabinet air conditioning unit / Electrostatic oil mist separator
- Hydraulic unit / Machine light / Interface for foot switch / Signal lamp
- Documentation including handwheel, PC keyboard, network preparation, tool monitoring, turning window, cleaning gun
- Clamping device for main spindle: Hainbuch BZI 80 centre pull /
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
