- Ferromatik MAXIMA 1000 Monos Injection Moulding Machine

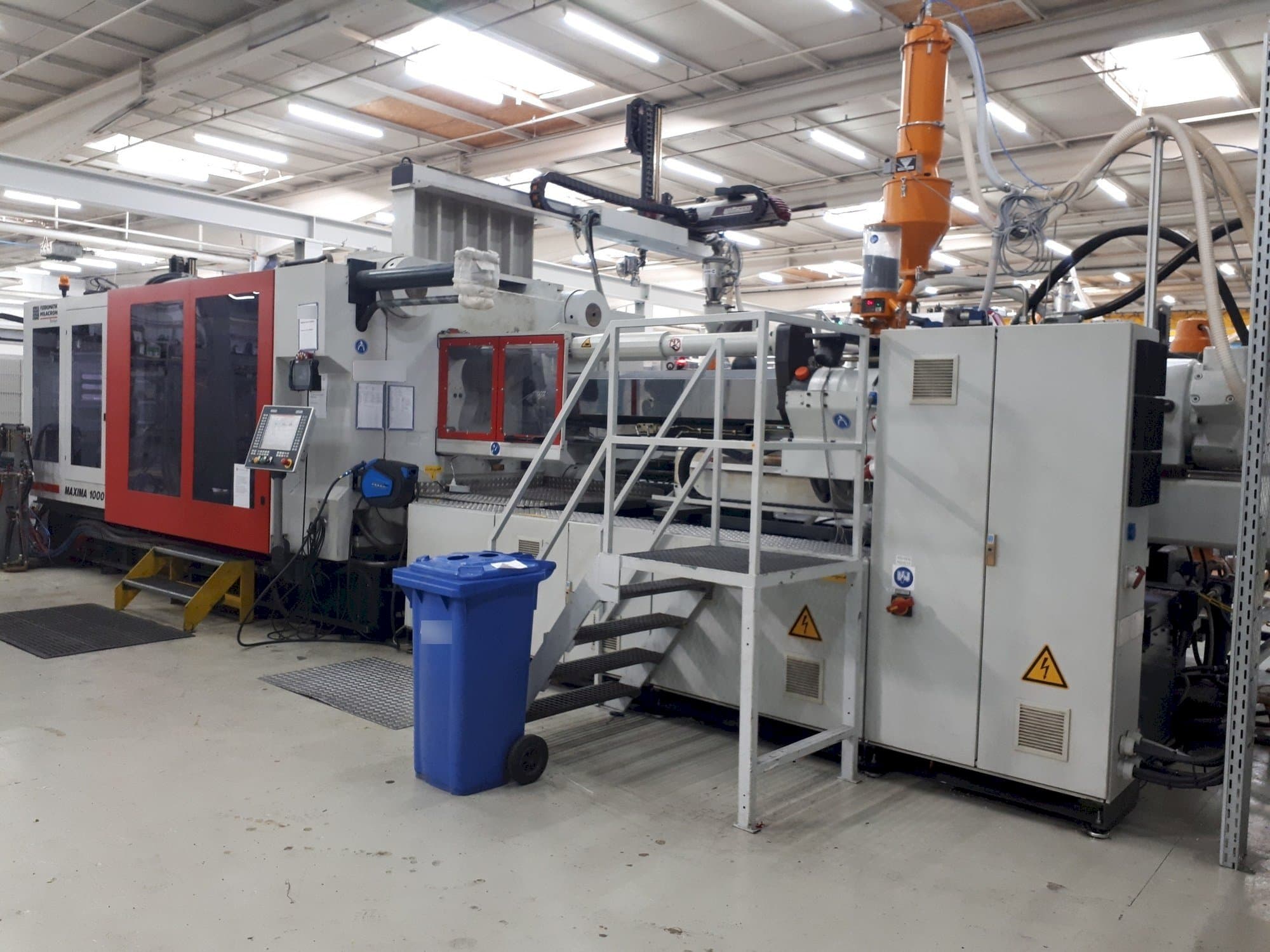

This Ferromatik MAXIMA 1000 Monos Injection Moulding Machine was built in the year 2008. It shows a production record of 50876 hours. It is operated through a Ferromatik MILACRON control unit. The machine is capable of operating with a clamping force 10000 kN, clamping ejector stroke 300 mm, mould installation height between 500 - 1300 mm. It can works with a screw diameter 110 mm and their a speed up to 171 rpm.
Übersicht
- Hersteller: FERROMATIK
- jahr: 2008
- MODELL: MAXIMA 1000 Monos
- Produktionsstunden: 50876
- anwendungstyp: Spritzgießen
- Standort: Polen
- maschinentyp: Hydraulische Spritzgießmaschine
Technische Daten - FERROMATIK MAXIMA 1000 Monos
Maße
- Maschinentiefe: 3180 mm
- Maschinenhöhe: 2820 mm
- Maschinengewicht: 54000 kg
Technische Spezifikation
- Klemmkraft: 10000 kN
- Max. Schussgewicht: 3805 g
- Schneckendurchmesser: 110 mm
Zusätzliche Informationen
Machine Benefits
Qualitative Machine Benefits
- Ceramic heating tape includes
- Plastification power (ps): 188 g/s
- Injection power (ps): 1067 ccm/s
- Theoretical shot volume: 4181 ccm
- Hydraulic shot-off nozzle includes
- Extruder with screw diameter 80 mm
- Flange cooling controlled separately on screen included
- Machine in good working condition, ready for tests
Technical Machine Benefits
- No. Of injection units: 1
- Opening path by min. Mould installation height: 1900 mm
- Opening path by max. Mould installation height: 1100 mm
- Opening path (plate distance) max. : 2400 mm
- Clear span between the holm (h x v): 1550 x 1200 mm
- Hardened exchange rings, thickness 20 mm, both sides yes
- Ejector chamber depth: 240mm
- Ejector passage through the traverse, diameter movable plate: 200 mm
- L/d-ratio of injection unit: 20
- Screw drive type: hydraulic
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
